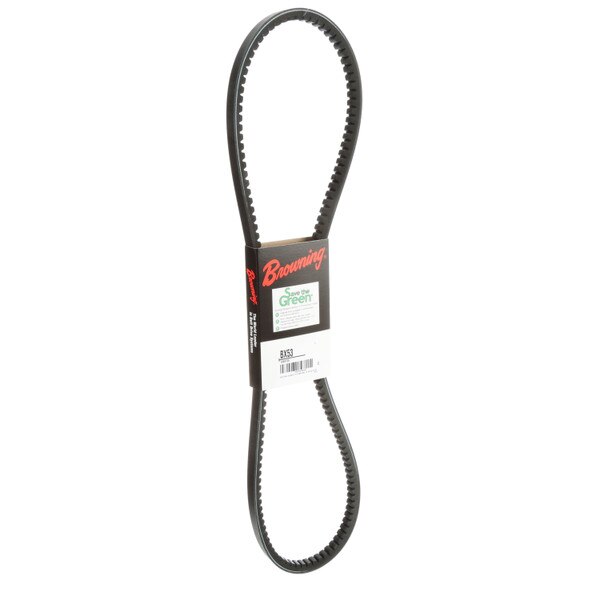

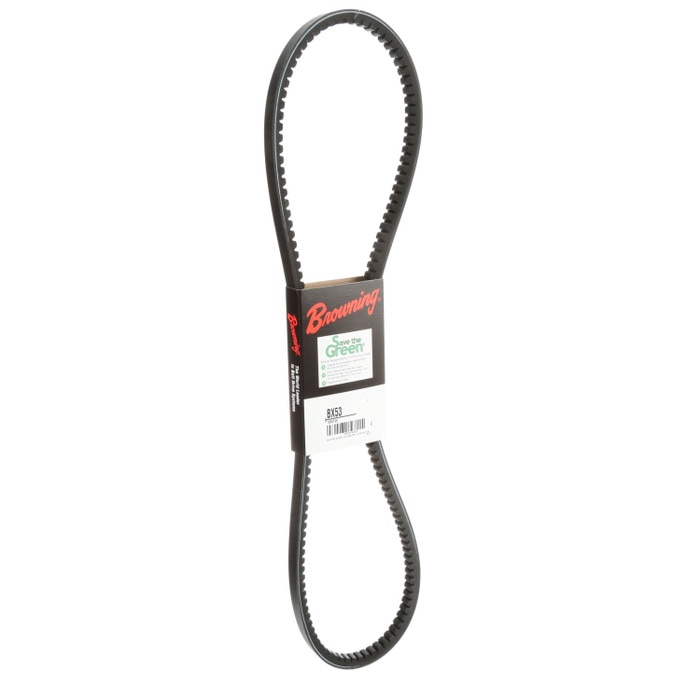

BX53 V-Belt

BX Section V-Belt — Cogged B Raw-Edge Drive Belt

• Top Width: 21/32" (0.656")
• Height / Depth: 13/32" (0.406")
• Construction: Cogged Raw-Edge — molded notches on inner surface
• Cogged: Yes
• HP Range: 1 – 25 HP
• Minimum Sheave OD: 4.0"
• Length Basis: Inside circumference (OC = IC + 3")

The BX cogged V-belt delivers the medium-duty power of the B cross-section (21/32" × 13/32") with the added flexibility of raw-edge, notched construction. Molded cogs allow operation on sheaves as small as 4.0" and improve heat dissipation under demanding duty cycles. Provides up to 30% more power capacity and longer service life versus a standard B belt. A direct upgrade for existing B-section drives in HVAC, agricultural, and industrial applications.
