AX110 V-Belt
Description

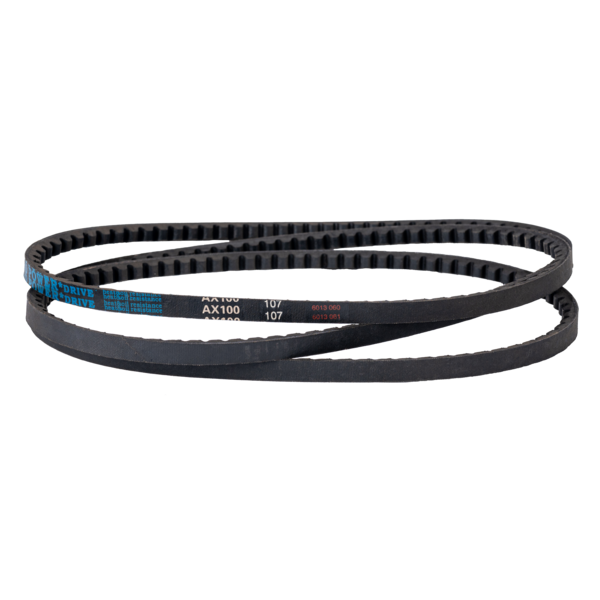

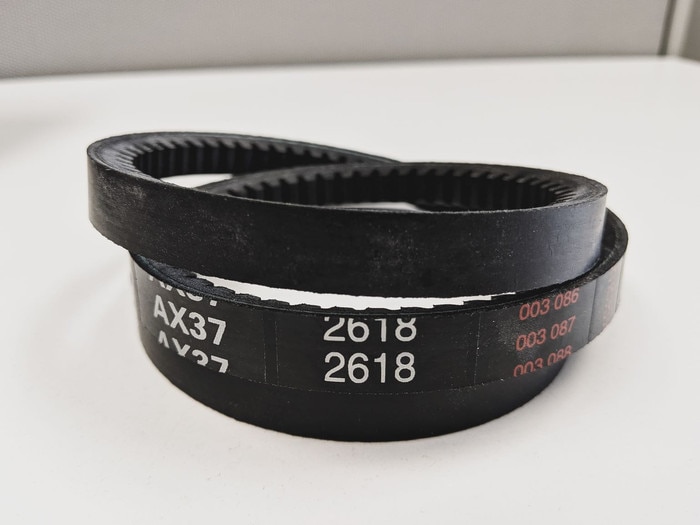

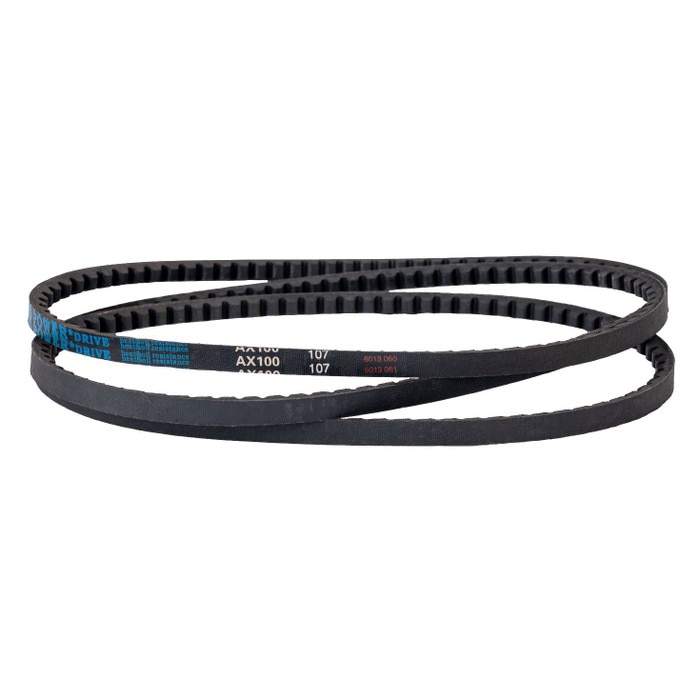

AX Section V-Belt — Cogged A Raw-Edge Drive Belt
- Top Width: 1/2" (0.500")
- Height / Depth: 5/16" (0.313")
- Construction: Cogged Raw-Edge — molded notches on inner surface
- Cogged: Yes
- HP Range: 1/4 – 10 HP
- Minimum Sheave OD: 2.2"
- Length Basis: Inside circumference (OC = IC + 2")
The AX cogged V-belt shares the A-section profile (1/2" × 5/16") with the addition of molded notches on the inner surface. These cogs reduce bending resistance, allow operation on sheaves as small as 2.2", and improve heat dissipation for up to 30% more power capacity versus a standard A belt. Raw-edge sidewalls increase the friction contact area for superior grip. Ideal for high-cycle HVAC, agricultural, and small-sheave industrial drives.
Specifications
Name
S-VB-AX110
Product Type
Belts
Display Name
AX110 V-Belt
Belt Profile
AX
Inside Circumference (Inches)
110
Outside Circumference (Inches)
112
Cogged
Yes
