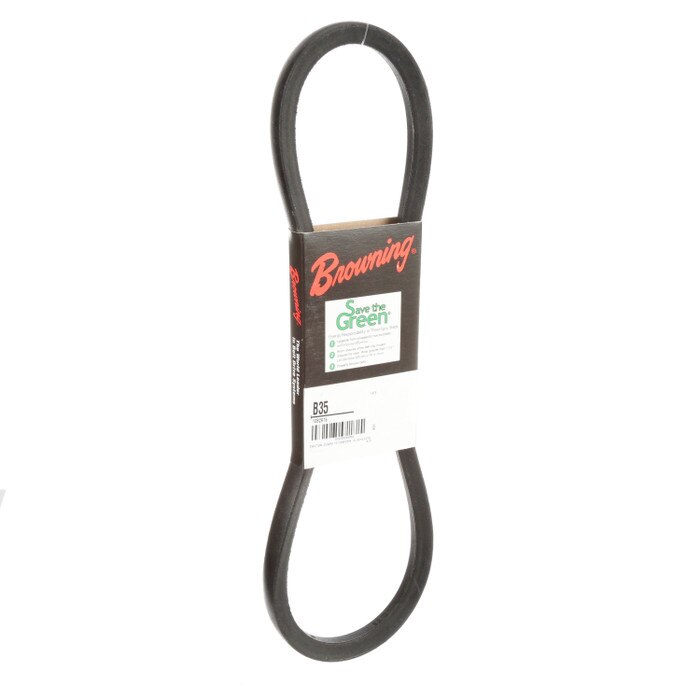

B35/5L380 V-Belt
Description
B / 5L Section V-Belt — Classical & Light-Duty Drive Belt
- Top Width: 21/32" (0.656")
- Height / Depth: 13/32" (0.406")
- Construction: Classical Wrapped — fabric-covered outer surface
- HP Range: 1 – 25 HP
- Minimum Sheave OD: 5.4"
- Length Basis: B-section: inside circumference (OC = IC + 3") | 5L: outside circumference ÷ 10
The B/5L-section V-belt is the workhorse of medium-duty industrial drives. At 21/32" top width and 13/32" depth, it handles 1–25 HP with durable fabric-wrapped construction resistant to heat, oil, and static build-up. Common applications include compressors, centrifugal pumps, HVAC blower fans, and general machinery drives.
Specifications
Name
S-VB-B35
Product Type
Belts
Display Name
B35/5L380 V-Belt
Belt Profile
B / 5L
Inside Circumference (Inches)
35
Outside Circumference (Inches)
38
Cogged
No
