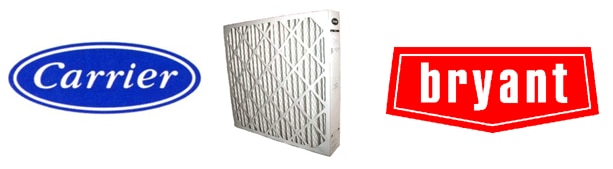

Below is a listing of the most common Carrier/Bryant full size filters. The MERV rating establishes the amount of filtration. The higher the number the better the filtration.

Nominal Size
Exact SizeMERV 8
MERV 11
16 x 25 x 5 15-3/4 x 24-3/4 x 4-3/8 FILXXCAR0016FILXXCAR0116
20 x 25 x 5 19-7/8x 24-3/4 x 4-3/8 FILXXCAR0020FILXXCAR0120
24 x 25 x 5 23-5/8 x 24-5/8 x 4-3/8 FILXXCAR0024FILXXCAR0124
16 x 20 x 5 15-1/2 x 19-5/8 x 4-3/8 FILXXFNC0017FILXXFNC0117
20 x 20 x 5 19-1/8 x 19-3/4 x 4-3/8 FILXXFNC0021FILXXFNC0121
20 x 23 x 5 19-7/8 x 22-5/8 x 4-3/8 FILXXFNC0024FILXXFNC0024

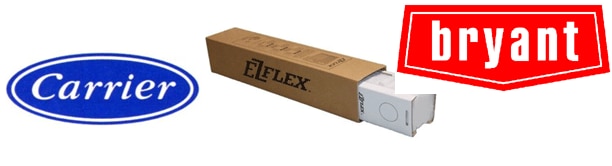

Below is a listing of common Carrier/Bryant collapsible filters. The first listing shows the standard replacement.

Nominal Size
Exact SizeMERV 10
MERV 13
16 x 25 x 5 15-3/4 x 24-3/4 x 4-3/8 EXPXXFIL0016EXPXXFIL0316
20 x 20 x 5 19 x 19-3/4 x 4-3/8 EXPXXFIL0020EXPXXFIL0320
20 x 23 x 5 19-7/8 x 22-5/8 x 4-3/8 EXPXXFIL0024EXPXXFIL0324

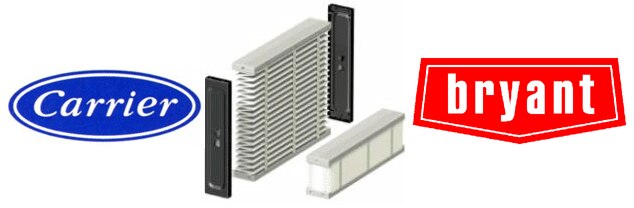

Below is a listing of common Carrier/Bryant collapsible filters. This listing includes the end caps.

Nominal Size
Exact SizeMERV 10
MERV 13
16 x 25 x 5 15-3/4 x 24-3/4 x 4-3/8 EXPXXUNV0016EXPXXUNV0316
20 x 20 x 5 19 x 19-3/4 x 4-3/8 EXPXXUNV0020EXPXXUNV0320
20 x 23 x 5 19-7/8 x 22-5/8 x 4-3/8 EXPXXUNV0024EXPXXUNV0324






Should you have any questions on the above - please give us a call at 877-345-8375.
