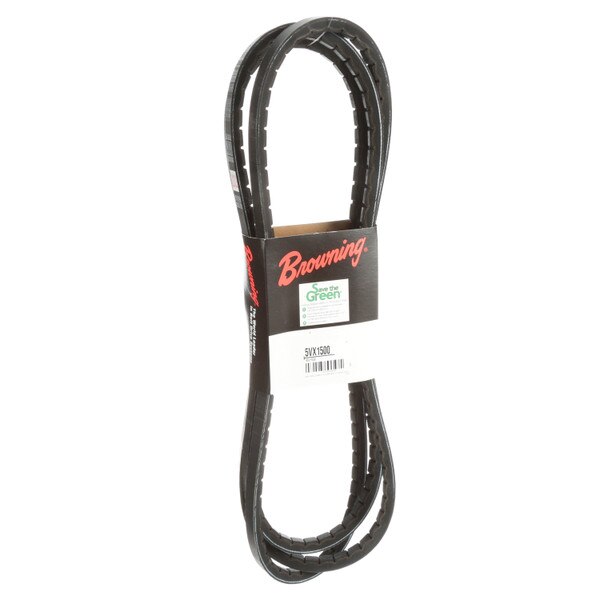

4 Banded 5VX1500 V-Belt

5VX Section V-Belt — Cogged Narrow Wedge Drive Belt

• Top Width: 21/32" (0.656")
• Height / Depth: 17/32" (0.531")
• Construction: Cogged Narrow Wedge — raw-edge with molded notches
• Cogged: Yes
• HP Range: 10 – 100 HP
• Minimum Sheave OD: 5.5"
• Length Basis: Outside circumference ÷ 10 (e.g., 5VX1000 = 100.0" OC) | IC = OC − 4"

The 5VX cogged narrow-wedge V-belt is the high-efficiency version of the 5V section (21/32" × 17/32"). Raw-edge notched construction reduces flex heat and allows operation on sheaves down to 5.5" — smaller than the standard 5V minimum of 7.1". The combination of wedge profile and cog flexibility makes this one of the most energy-efficient belt options for medium-to-heavy drives. Preferred for high-duty-cycle HVAC systems, industrial fans, and pump drives where efficiency and service life matter.
